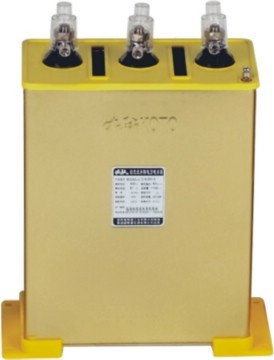

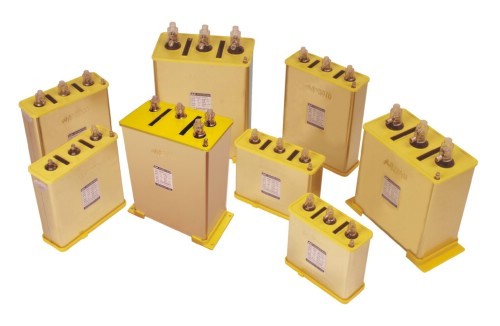

Power Capacitor(BSMJWX)

Product Description

We supply power capacitor which is mainly suit able for low voltage power network to improve power factor,reduce reactive loss and better the voltage quality.With IEC standard and GB/T standard.

The key points make us difterence from other power capacitor

1)      Excellent stability of the capacitance and the loss rate below 1% per year, the standared working time is 100,000 hours.

2)      Extraordinary design and consummate techincs make sure our power capacitor have 145% ventilation area for heat compare to other power capacitor.

Maint feartures:

a) Temperature:-25+50,humidity â‰¤ 80%RH,and altitude lower than 2000m.

R Rated voltage/Rated frequency: 230VAC~1200VAC, 50Hz.

c) Rated output: 1.0-90kvar.

d) Capacitance tolerance:-5+5%

e) Tangent of the loss angle: With the rated frequency and rated voltage,tgδ≤0.1% at 20℃

f)  With stand voltage: Between terminals 2.15 times rated voltage for 2 seconds, between terminals and container 3kVAC for 10 seconds.

g) Max permissible over-voltage:110% rated voltage.

    Max permissible over-current:130% rated current.

    Accord with standard: GB/T12747.1-2004  IEC60831-1,1996
